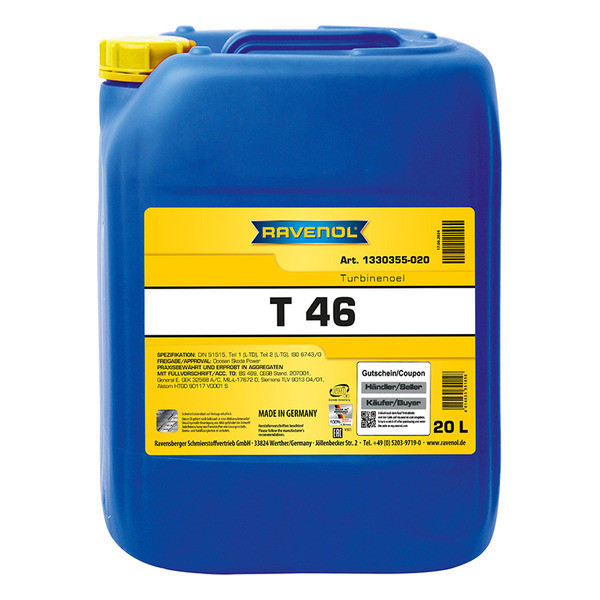

RAVENOL Turbinenöl T 46 is produced for the lubrication of gas and steam turbines as well as turbo compressors with and without transmission according to the specifications of DIN 51 515-2.
RAVENOL Turbinenöl T 46 is based on high quality mineral base oils with agents to increase the corrosion protection and aging resistance.
RAVENOL Turbinenöl T 46 is a universal mineral oil for turbines of especially chosen refined base oils with a natural high viscosity index. So-called “metal deactivators” are added to the turbine oil in addition to the normal additives in order to guarantee the excellent characteristics.
Application Note
RAVENOL Turbinenöl T 46 is used in fixed gas and steam turbines as well as electrical machines or machines driven by steam turbines like generators, compressors, pumps and transmissions.
RAVENOL Turbinenöl T 46 can also be used for the lubrication of hydraulic systems, compressors, gear transfers and bearings in case of problems of the contamination with water because a high protection against rust and oxidation is requested.
Characteristics
- an excellent thermic and oxidative stability
- an excellent viscosity temperature behaviour
- a high and stable viscosity index
- a very good oxidation stability also at very high temperatures
- a good protection against corrosion of Ferro and non Ferro metals
- an excellent water separation behaviour
- a very good air separation behaviour which excludes foam formation as far as possible
- a low pourpoint
- a good corrosion behaviour
- an excellent water separation behaviour / demulsifying behaviour
Texnik xususiyatlar
| Parametr | Qiymat | Audit |
|---|---|---|
| Kenglik, mm | 580 | |
| Uzunlik, mm | 580 | |
| Balandlik, mm | 885 | |
| Og‘irlik, kg | 192.347 | |
| Viskozite | 46 | |
| Brand | RAVENOL | |
| Mos keladi | Doosan Skoda Power | |
| Zichlik 20°С da, g/cm³ | 840 | EN ISO 12185 |
| Rang | Yellow | տեսողական |
| Viskozite 100°С da, mm²/s | 7.8 | DIN 51562-1 |
| Viskozite 40°С da, mm²/s | 46.1 | DIN 51562-1 |
| Viskozite indeksi VI | 137 | DIN ISO 2909 |
| Qotish harorati, °C | -27 | DIN ISO 3016 |
